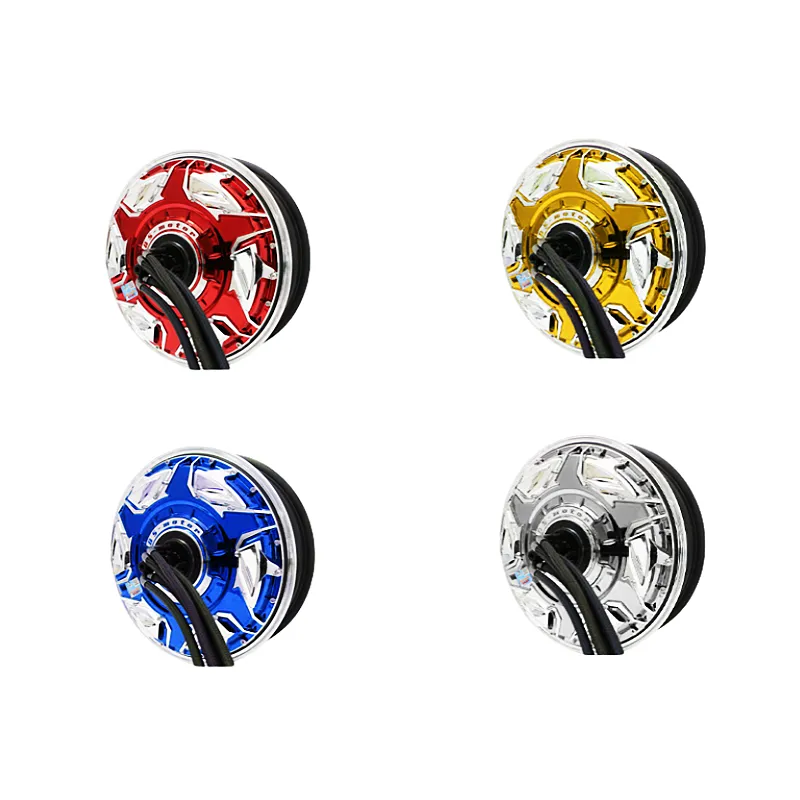

12inch 5th Gen 25KW Hub Motor Electric Motorcycle Conversion Kit Electric Scooter Powerful Motor

Product Introduction

Product Information

Reversing direction:

Brushless

structure:

permanent magnet

motor efficiency:

IE 1

type:

brushless motor

rotational speed:

30-100km/h

Protective characteristics:

waterproof

Reversing direction:

Brushless

rotational speed:

30-100km/h

motor efficiency:

IE 1

type:

brushless motor

structure:

permanent magnet

Protective characteristics:

waterproof

use:

car electric bicycle motorcycle

Warranty period:

1 year

Continuous current:

55A

Model number:

SM12-inch

country of origin:

Jiangsu, China

Brand:

Product Name:

Wheel Hub Motor

Brush Type:

Brushless

speed:

30-100km/h

power:

3-25KW

Voltage:

48 - 96 volts

Typical Application:

Electric motorcycles,Electric bicycles,Scooter

tyre size:

12x2.5/3/3.5/5;

Sales Unit:

Single item

Single package size:

50x40x30 cm

Gross weight of a single product:

60.0 kg

Product Description

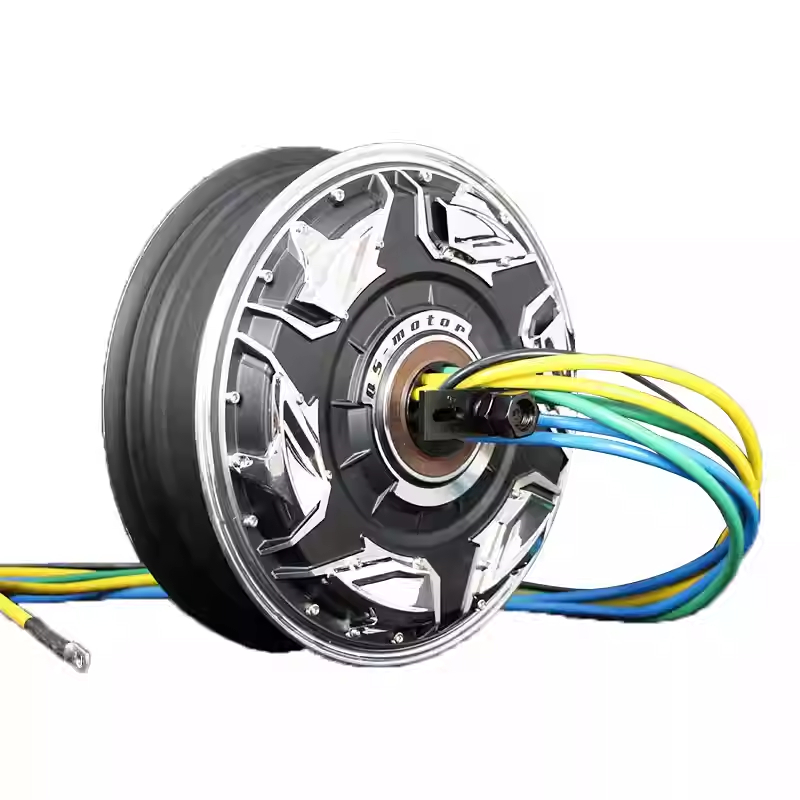

12inch 72V 25KW Motorcycle Hub Motor

*Motor design: dual axle(integrated) with 12 inch moped rim
* Rim size: 12X 5 inch (narrow tyre by default), matching tyres: 130/70-12 etc.
* Magnet height: 45mm, 16 pole pairs

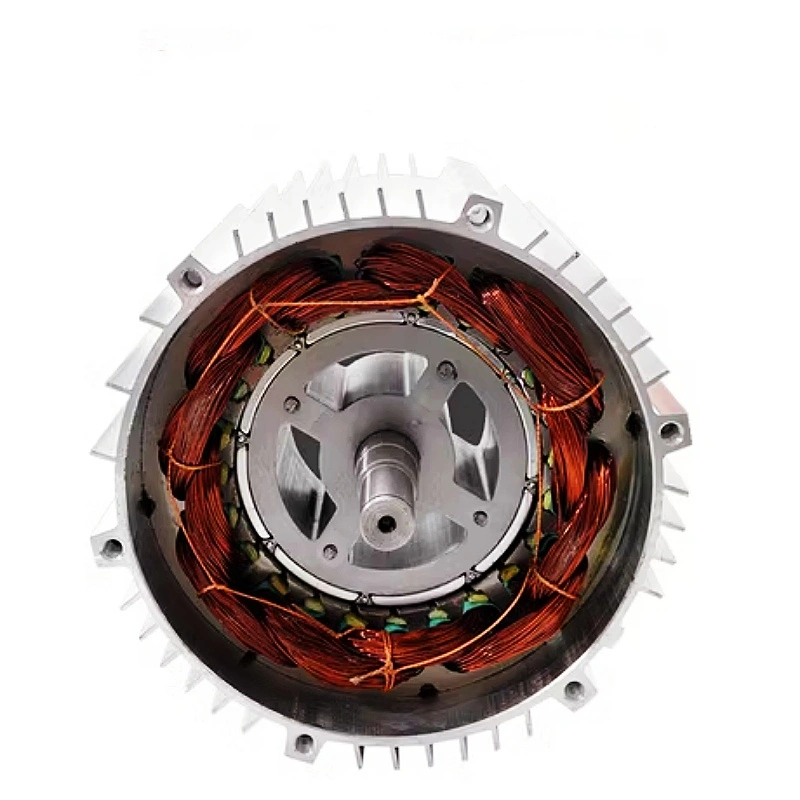

* Stator: Aluminium core
* Rated power: 5000W
* Speed: 72V90KPH/60V80KPH/48V65KPH by default
* Working voltage option: 72V/60V/48V
* Max torque around: 224Nm
* KV: 16.45
* Thermo probe: KTY83-122 optional) by default
* Max efficiency around 88%
* Brake type: disc brake (default), PCD3*80mm-M8, CB 58mm
* dropout: 200mm
* Dual halls (one spare one in case of damage) with waterproof connectors
* phase wire: 16mm²
* Waterproof grade: IP54

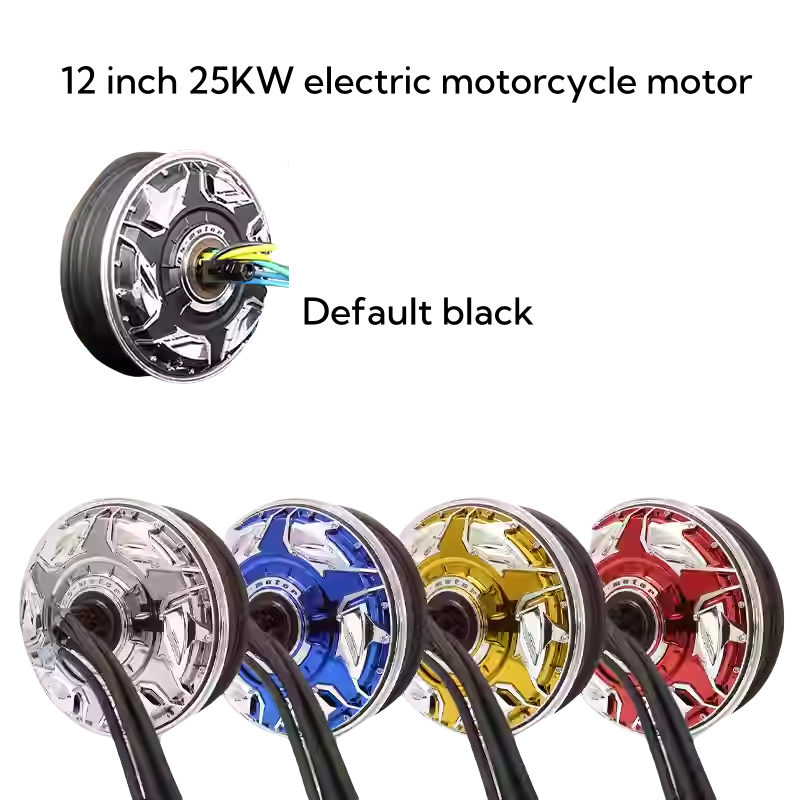

* Color: black (default)

Specifications

Item	Value
Brand Name	SM
Type	Brushless Motor
Speed	30-100km/h
Commutation	Brushless
Voltage	48-96V
Power	1500-5000W
Typical Applications	Electric Motorcycle; Ebike; Scooter;

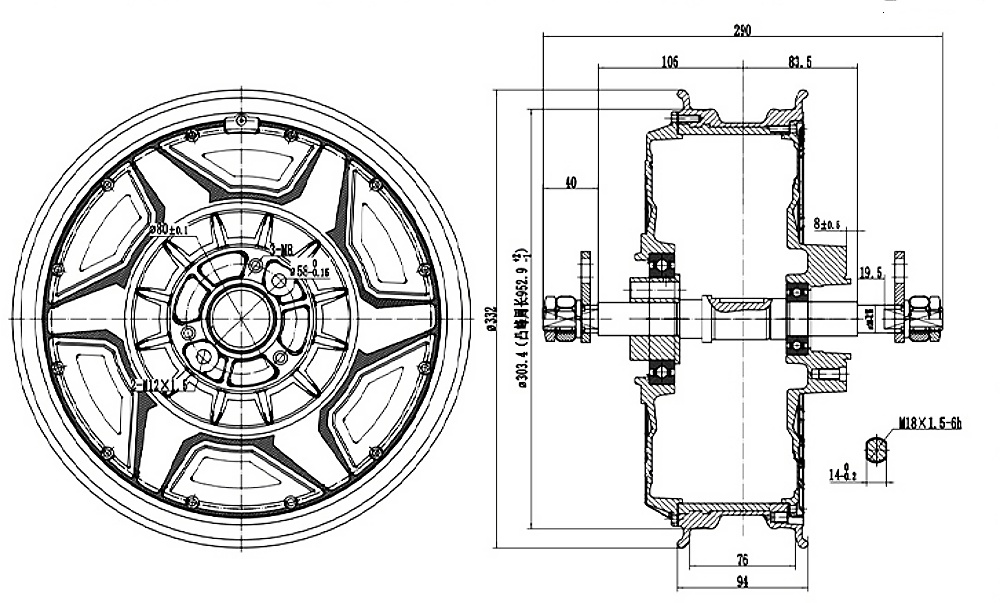

Product drawing

Recommended Products

Application

Packaging & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Wuxi Shenma Auto Parts Co. LTD is located in Wuxi City, Jiangsu Province, is the most qualified disc brake and hub motor manufacturer for more than 20 years in China.

Our main products are electric vehicles, motorcycle disc brakes, brushless/brush DC motors, controllers, chargers, converters, lithium battery series etc. The main advantage of company can be customized according to your requirements of brake switch code, tubing length, steel angle etc.

We always adhere to the philosophy of "Details determine success or failure, quality wins the market", deeply loved by
domestic and foreign customers.

FAQ

1. who are we?
We are manufacturer of Brushed/Brushless motor, geared motor, Disc Brake system for more than 20 years in China.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Disc brake,brake disc,brake caliper,brake pads,brake lever;DC brushed motor;Brushless hub motor;

4. why should you buy from us not from other suppliers?
The core advantages of our company:1,customize the corresponding safe cost-effective brake system according to the actual situation of electric vehicle or motorcycle;2,brake system accessories are complete, non-standard can be customized, fast delivery;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD; Accepted Payment Type: T/T,L/C,PayPal;
