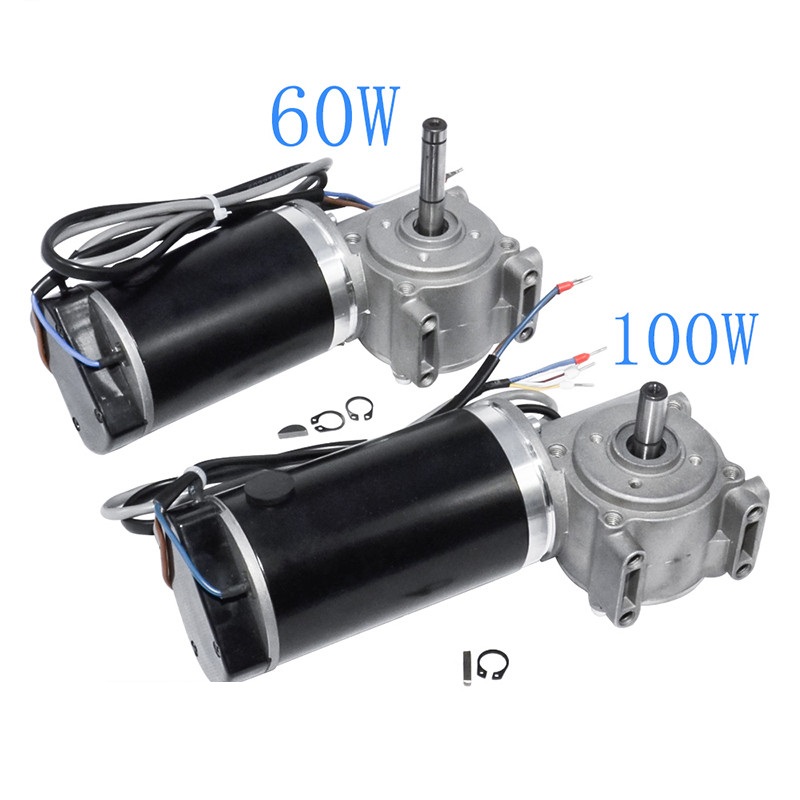

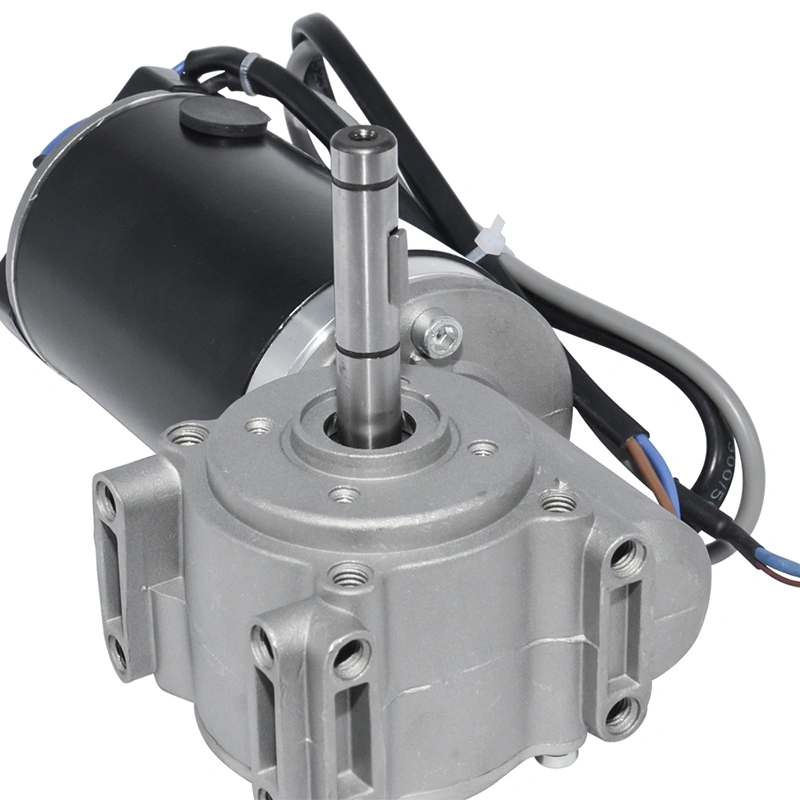

DC24V 60W 100W Single Signal Worm Gear Reducer Motor with Hall Encoder for Hotel Automatic Doors

Product Introduction

Product Information

Reversing direction:

brush

structure:

permanent magnet

motor efficiency:

IE 1

type:

Brushed motor

rotational speed:

180/250 rpm

Protective characteristics:

drip-proof

Reversing direction:

brush

rotational speed:

180/250 rpm

motor efficiency:

IE 1

type:

Brushed motor

structure:

permanent magnet

Protective characteristics:

drip-proof

use:

automobile, household appliances, electric tricycle

Warranty period:

3M-1Y

Continuous current:

3.5 amps

Model number:

DC Motor

Torque:

4 nanometers

country of origin:

Jiangsu, China

Brand:

Product Name:

Brushless DC Motor

Output power:

60/100 watt

Voltage:

DC 24 V

rated speed:

180/250 rpm

application:

Automatic Sliding Door Operator

Sales Unit:

Single item

Single package size:

30 x 20 x 10 cm

Gross weight of a single product:

3.0 kg

Product Description

Specifications

Product name	BLDC MOTOR
Output Power	60/100WATT
Voltage	24VDC
Rated Speed	180/250RPM
Application	Suitable for automatic sliding door operator, interior door operator, telescopic door, emergency evacuation automatic door.

Company Profile

Wuxi Shenma Automobile Parts Co., LTD is located in Wuxi, Jiangsu Province, China more than 20 years the most qualified disc brake and hub motor manufacturers.

Our main products are electric vehicles, motorcycle disc brakes, brushless/brush DC motor, controller, charger, converter, lithium battery series and so on. The main advantage of our company can be customized according to your brake switch code, tubing length, steel Angle and other requirements.

We always adhere to the "details determine success or failure, quality wins the market" concept, deep
domestic and foreign customers alike.

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. Who are we?
We are China more than 20 years of brushed / brushless motors, gear motors, disc brake system manufacturers.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Disc brake, brake disc, brake caliper, brake pads, brake pull lever; Brushed DC motor; Brushless hub motor;

4. Why should you buy from us not from other suppliers?
The core advantages of our company:

1, according to the actual situation of electric vehicles or motorcycles customized corresponding safe and cost-effective braking system;

2, brake system accessories complete, non-standard can be customized, fast delivery;

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Types: T/T,L/C,PayPal;
