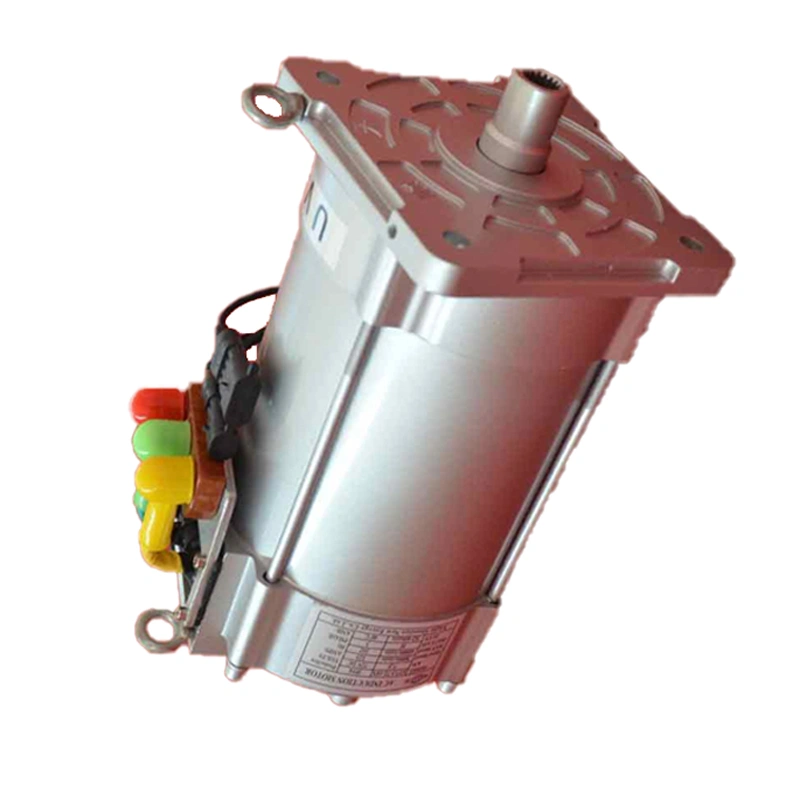

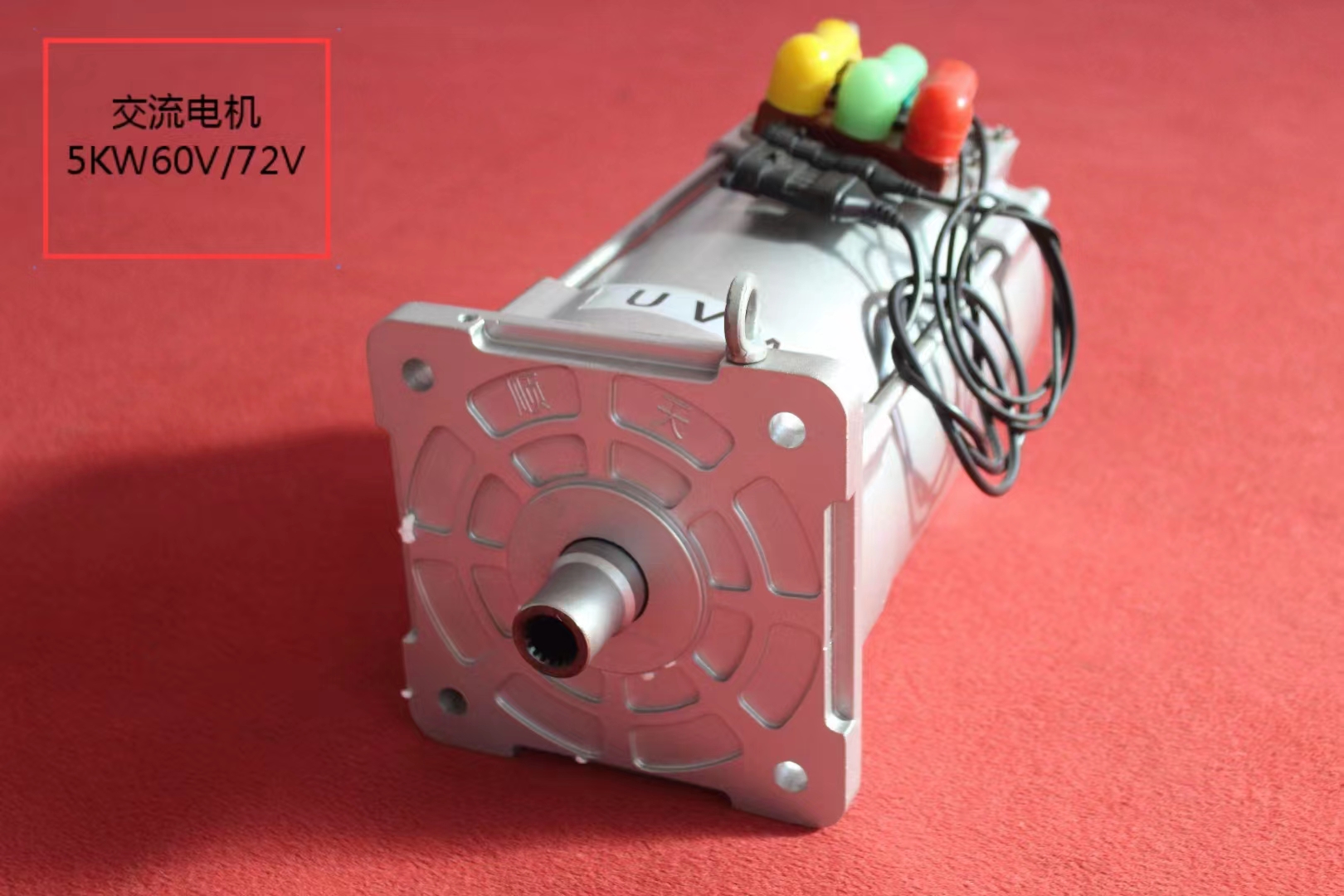

72V 5KW Three-phase AC Motor for Low-speed Electric Vehicles, Sightseeing Buses, and Golf Carts

Product Introduction

Product Information

Model number:

SM-AC-04

Warranty period:

3M-1Y

Voltage:

72 volts

motor efficiency:

IE 1

phase:

three-phase

Protective characteristics:

drip-proof

phase:

three-phase

Voltage:

72 volts

Protective characteristics:

drip-proof

motor efficiency:

IE 1

Warranty period:

3M-1Y

Model number:

SM-AC-04

Brand:

country of origin:

Jiangsu, China

frequency:

50/100 Hertz

Connection size:

140*140 or 152*152 flange connection

Connection method:

male drive extension, 18-tooth involute internal spline

battery voltage:

72 volts

Rated power:

5kW

rated speed:

3000 revolutions per minute

Maximum speed:

6000rpm

rated torque:

15.9 newton meter

Cooling method:

natural air cooling

insulation class:

Class H

Protection class:

IP54

Sales Unit:

Single item

Single package size:

25 x 25 x 25 cm

Gross weight of a single product:

28.0kg

Product Description

Specifications

Item	Value
Warranty	3months-1year
Place of Origin	China
Brand Name	SM
Model Number	SM-AC-04
Frequency	50/100HZ
Phases	Three Phase
AC Voltage	72V
Efficiency	IE 1
Connection size	140140 or 152152 method blue connection
Connection type	convex shaft extension,18 teeth involute internal spline
Battery voltage	72V
Rated power	5KW
Rated speed	3000RPM
Maximum speed	6000RPM
Rated torque	15.9N.m
Cooling method	Natural air cooling
Insulation grade	Class H
Protection grade	IP54
Application	Widely used in low-speed electric vehicles, golf carts, sightseeing cars, etc.
