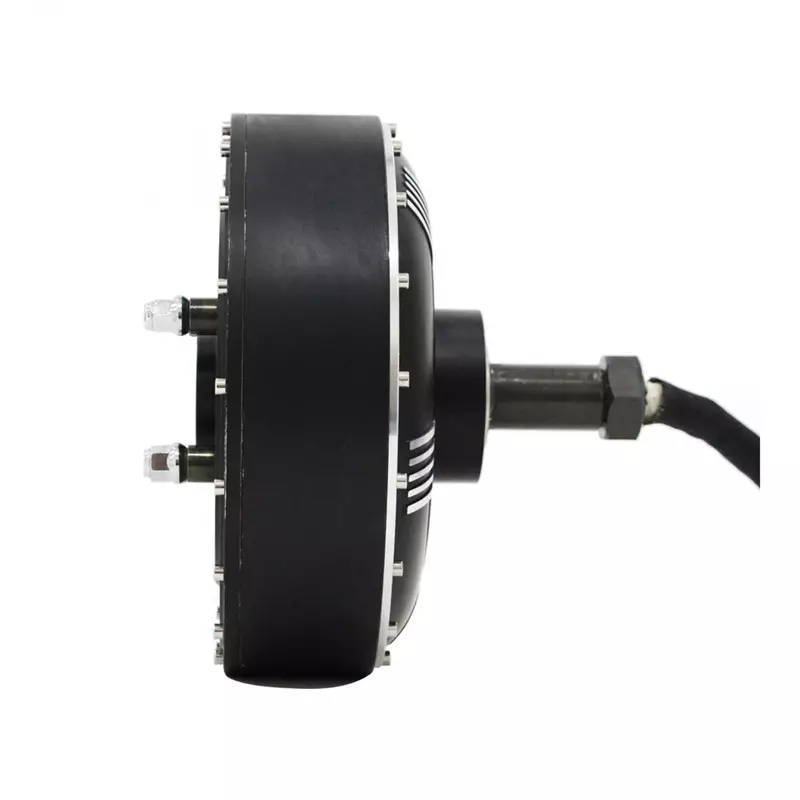

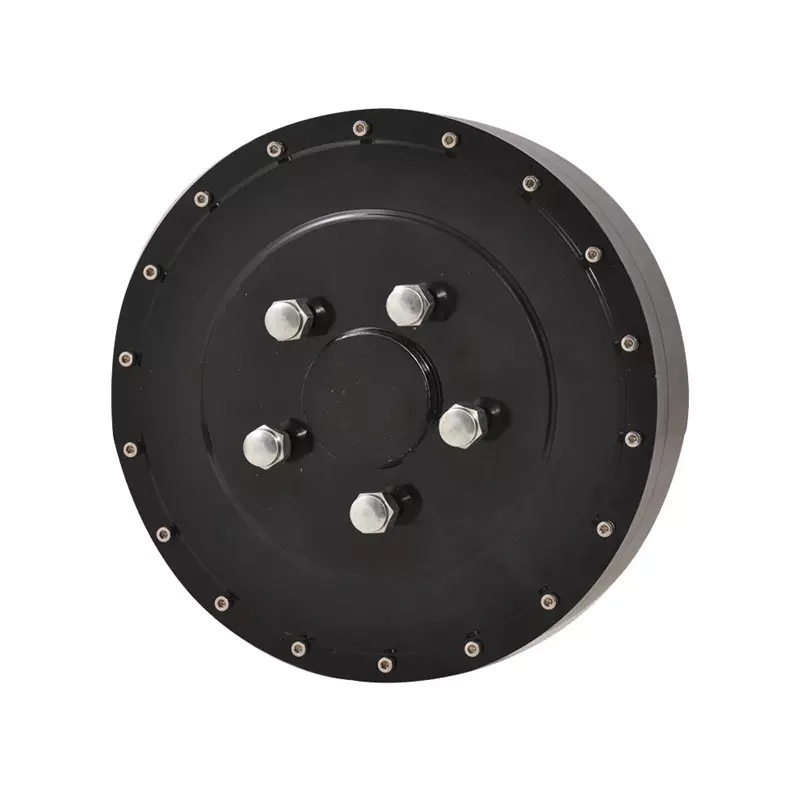

QS 2000W 72V Five-hole Brushless Hub Motor for New Energy Electric Vehicles

Product Introduction

Product Information

Brand:

Model number:

SM-AC-03

Warranty period:

3M-1Y

Voltage:

72 volts

motor efficiency:

IE 1

phase:

three-phase

phase:

three-phase

Voltage:

72 volts

motor efficiency:

IE 1

Warranty period:

3M-1Y

Model number:

SM-AC-03

Brand:

country of origin:

China

frequency:

50/100 Hertz

Connection size:

Single Shaft QS 2000W 205 45H V3 72V Electric Car Hub Motor

Connection method:

In-wheel motor of electric vehicle

battery voltage:

72 volts

Rated power:

7.5kW

rated speed:

3000 revolutions per minute

Maximum speed:

6000rpm

rated torque:

23.8 Nm

Cooling method:

natural air cooling

insulation class:

Class H

Protection class:

IP54

Sales Unit:

Single item

Single package size:

25 x 25 x 25 cm

Gross weight of a single product:

30.0 kilograms

Product Description

Specification

Item	Value
Warranty	3 months-1 year
Place of Origin	China
Brand Name	SM
Model Number	SM-AC-01
Frequency	50/100HZ
Phase	Three-phase
AC Voltage	72V
Efficiency	IE 1
Connection Size	140140 or 152152 method blue connection
Connection Type	protruding shaft extension, 18 teeth involute internal spline
Battery Voltage	96V
Rated Power	7.5kw
Rated Speed	3000rpm
Max Speed	6000rpm
Rated Torque	23.8Nm
Cooling Method	Natural Air Cooling
Insulation class	H
Protection class	IP54
Application	Widely used in low-speed electric vehicles, golf carts, sightseeing vehicles, etc.

Packaging & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Our company is located in Dongting town, Xishan District, Wuxi City, Jiangsu Province. The company is engaged in the R & D and sales of electric vehicles, motorcycle disc brakes, products are exported to many countries and regions in the world, stable quality, reliable, safe, and related products and brushless DC motors, controllers, chargers, converters, lithium battery series, as well as Yamaha, Suzuki, Honda motorcycle accessories sales. A complete supply chain from production to client. The company has 2 software engineers, 3 hardware engineers, 10 sales personnel. The company always adheres to the concept of "details determine success or failure, quality wins the market", which is deeply praised by customers at home and abroad. The company's main advantage can be customized according to your requirements brake switch code, oil pipe length, steel Angle,.
