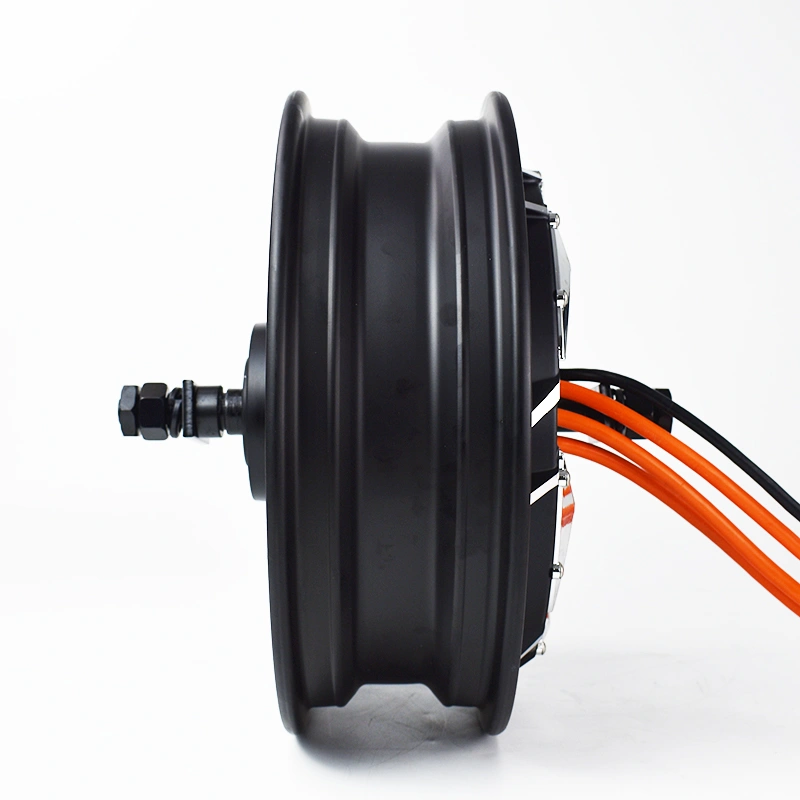

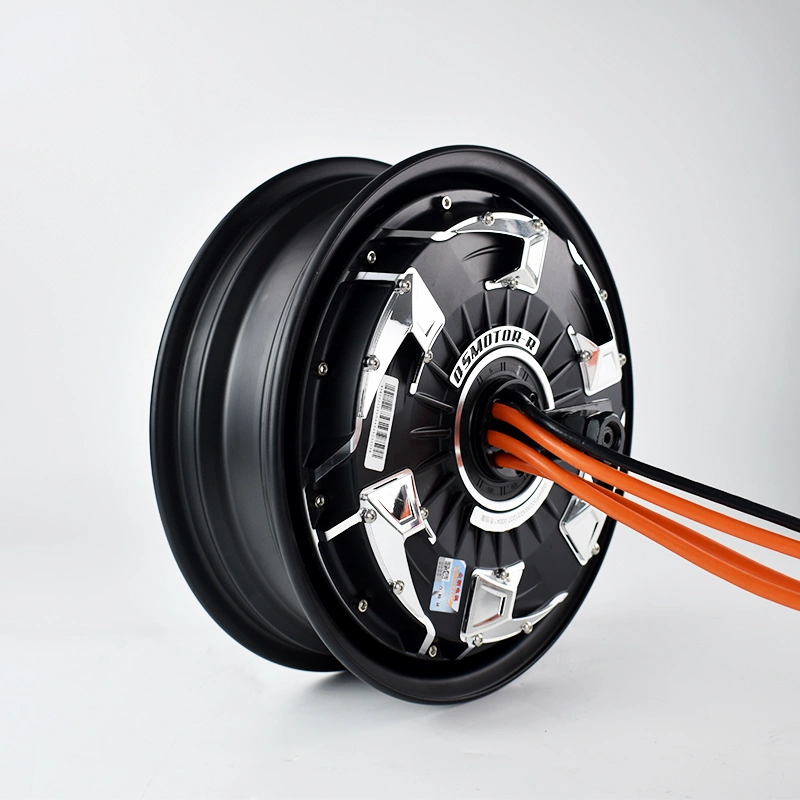

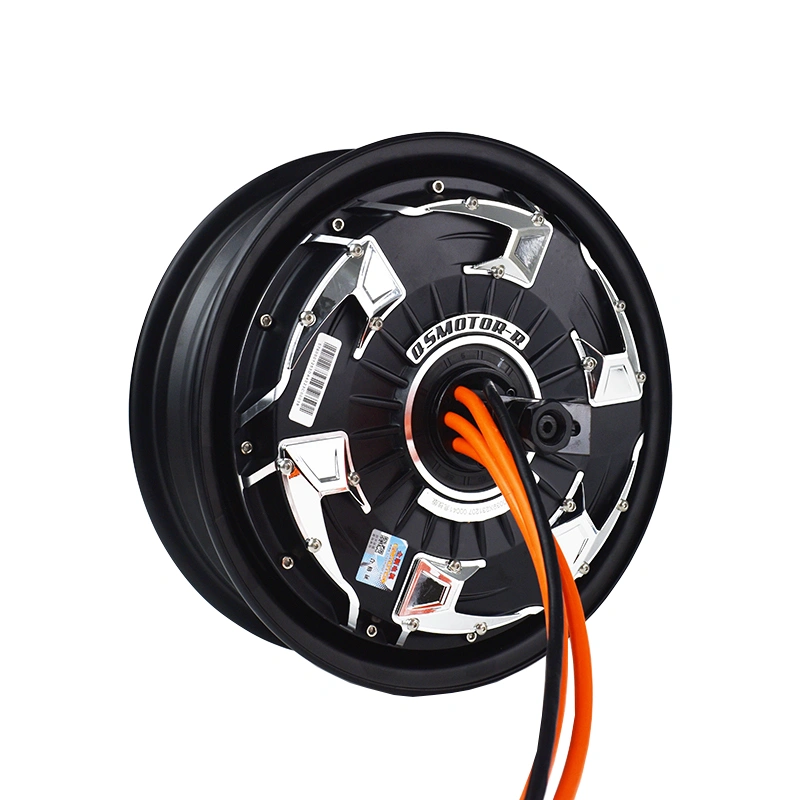

QS Motor 12 Inch Electric Bicycle 2000W/3000W Permanent Magnet Brushless IP65 Waterproof Aluminum Frame Rear Hub Motor

Product Introduction

Product Information

IP Rating:

IP65

Reversing direction:

Brushless

rotational speed:

two thousand five hundred

Rotational speed (Rpm):

two thousand five hundred

Rated power:

2000W/3000W

Rated voltage:

72 volts

Reversing direction:

Brushless

Rated voltage:

72 volts

Rated power:

2000W/3000W

Rotational speed (Rpm):

two thousand five hundred

rotational speed:

two thousand five hundred

IP Rating:

IP65

motor efficiency:

IE 4

type:

brushless motor

structure:

permanent magnet

Is there a frame?:

aluminium frame

Motor mounting type:

Rear Wheel Hub Motor

Protective characteristics:

waterproof

use:

electric bicycle

Warranty period:

more than 3 years

Continuous current:

650a

Model number:

V4 8000W P60H

Torque:

Two hundred

country of origin:

Guangdong, China

Brand:

QS MOTOR

Sales Unit:

Single item

Single package size:

45X45X44 cm

Gross weight of a single product:

27.36 kilograms

12" QS Motor 4th generation motor is an upgrade from the third generation motor, Can withstand greater instantaneous current and temperature. However, the motor's constant speed is the same in this respect, so the details page uses the third generation to tell you as a reference.

Motor Brake

This motor disc brake only:

Recommend motor disc brake disc diameter 180-220mm install

disc brake disc dimensions are:

(1)inner circle positioning: (disc inner circle) is 58mm.

(2)Disc Screw: Use 3 M8 disc brake screws.

(6)The size of the 3 holes in the disc brake: The circle formed by the center points of the 3 disc brake screw holes, the circle diameter is 80mm.

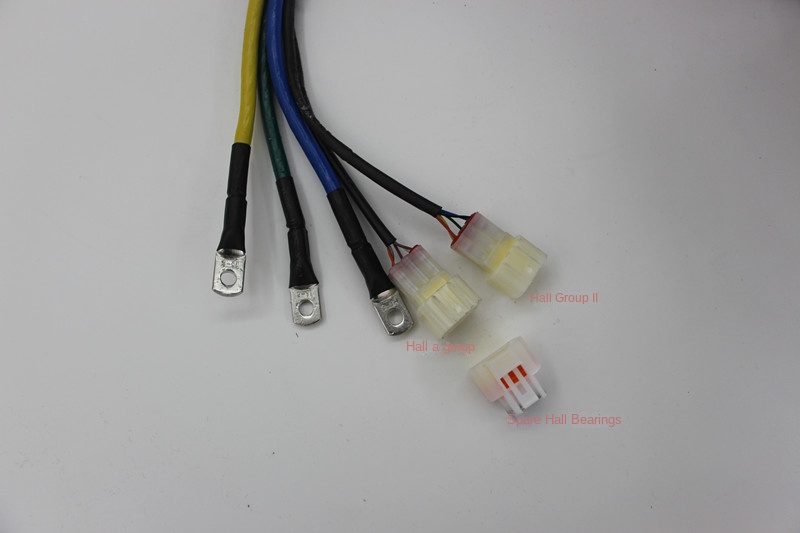

Motor double hall description

QSMOTOR high-power motor configuration 2 sets of Hall, one group is broken, one group directly switch, reduce the repair rate.

Specifications

Item	Value
Continuous Current(A)	650A
Efficiency	IE 4
Speed(RPM)	2500
Model Number	V4 8000W P60H
Brand Name	QSMOTOR
Place of Origin	China
Frame	Aluminium Frame
Motor Installation Type	Rear Hub Motor
Rated Power	2000w/3000w
Rated Voltage	72V
Warranty	3years
Commutation	Brushless
Construction	Permanent Magnet
Protect Feature	IP65
Protection function	Waterproof
Rotation Speed RPM	2500
Torque	200
Type	Brushless Motor
Usage	E-bike
